Radicon Gearbox K063232.BANT
$2,267.40
Description

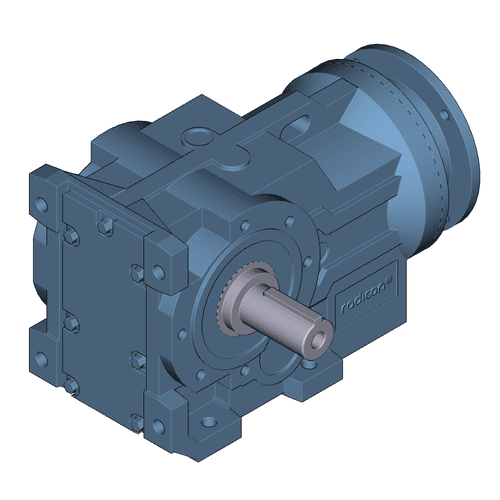

Radicon Series K Right Angle Helical Bevel Gearbox
* Size 06
* 32:1 Ratio
* NEMA 180TC Motor Adapter Input
* 1.625″ Left Hand Extended Output Shaft
Ratings Based On 1750 RPM Motor:
* Output Speed (RPM): 54
* Maximum Input Horsepower: 6.37
* Maximum Output Torque: 7170 lb-in
* Overhung Load (lbf): 1370
Please specify your desired mounting position at checkout to ensure proper
lubrication level.
3D File
2D PDF
Manufacturer Resources
