Radicon Gearbox M085210KBANU
$3,474.86
Radicon Gearbox M085210KBANU – Size 08 Series M inline helical gearbox with 10000:1 ratio and 2.125″ extended output shaft. 15,000 lb-in torque, NEMA 56C input, ideal for ultra-low-speed, high-torque applications.
Description

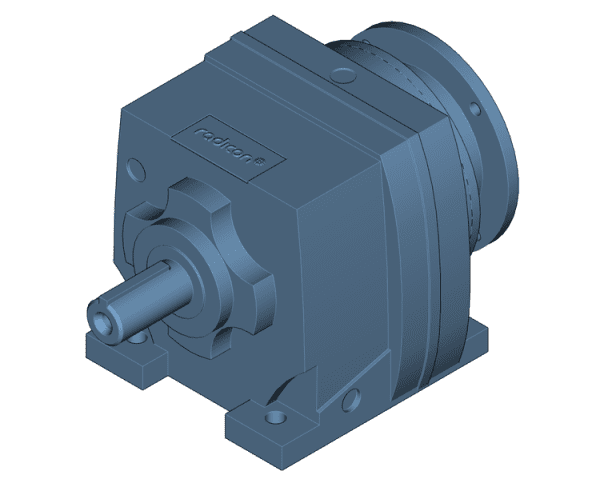

The Radicon Gearbox M085210KBANU is a Series M inline helical gearbox engineered for extreme torque and precision in industrial motion control. Featuring a 10000:1 ratio, 2.125″ extended output shaft, and NEMA 56C motor adapter, this gearbox provides powerful torque output and exceptional durability. It’s designed for demanding mechanical systems requiring controlled, slow-speed operation.
Technical Specifications
At 1750 RPM input:
-
Size: 08
-
Gear Ratio: 10000:1
-
Motor Adapter: NEMA 56C
-
Output Speed: 0.16 RPM
-
Input Power: 0.041 HP
-
Output Torque: 15,000 lb-in
-
Overhung Load Capacity: 3640 lbf
Please specify your preferred mounting position at checkout to ensure proper lubrication and maximum performance.
Applications
Engineered for heavy-duty torque transfer in applications such as:
-
Conveyor and material handling systems
-
Lifting, hoisting, and automation systems
-
Rotary equipment and turntables
-
High-torque machinery requiring slow, precise motion
The M085210KBANU gearbox provides consistent, vibration-free output with minimal maintenance for long-term industrial reliability.
Why Choose Radicon Series M Gearboxes
Radicon’s Series M gearboxes offer exceptional strength and smooth performance through precision-engineered helical gearing. Built for endurance and energy efficiency, they ensure long service life even under continuous load conditions.
-
Superior torque capacity for compact size
-
Low-noise, high-efficiency operation
-
Maintenance-free sealed lubrication
-
Direct compatibility with NEMA 56C motors
Order the Radicon Gearbox M085210KBANU
Order the Radicon M085210KBANU gearbox for reliable, heavy-duty performance across demanding industrial applications.
For bulk orders or support, call 1-877-465-9108 or email support@industrialgearboxsolutions.com.
Manufacturer Resources
FAQs
What makes the M085210KBANU suitable for ultra-high torque needs?
Its 10000:1 gear ratio and helical design provide exceptional torque multiplication at very low output speeds.
What are common applications?
Ideal for conveyors, automated machinery, and rotary drive systems requiring powerful torque control.
Does it require frequent maintenance?
No. The gearbox features a sealed lubrication system, making it maintenance-free for extended operation.
Can I specify mounting orientation?
Yes, you can select your preferred mounting orientation at checkout for optimal lubrication and performance.
