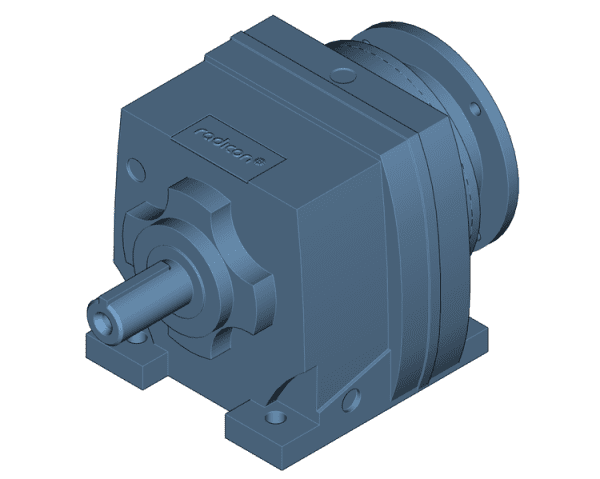

Radicon Gearbox M085246CBANU
$3,075.10
Radicon Gearbox M085246CBANU – Size 08 Series M inline helical gearbox with 4600:1 ratio and 2.125″ extended output shaft. 15,000 lb-in torque, NEMA 56C input, precision-engineered for high load and long service life.
Description
The Radicon Gearbox M085246CBANU belongs to the Series M inline helical gearbox family, designed for applications requiring ultra-high torque and slow, stable rotational output. Built for precision and endurance, this model’s 4600:1 ratio provides exceptional torque multiplication and control, ideal for continuous-duty systems and heavy machinery.
Technical Specifications
At 1750 RPM input:
-
Size: 08
-
Gear Ratio: 4600:1
-
Motor Adapter: NEMA 56C
-
Output Speed: 0.37 RPM
-
Input Power: 0.094 HP
-
Output Torque: 15,000 lb-in
-
Overhung Load Capacity: 3640 lbf
Specify your mounting position at checkout to ensure proper lubrication and optimal operation.
Applications
Perfect for:
-
Heavy-duty conveyor and mixing systems
-
Rotary drives requiring fine motion control
-
Hoists, lifts, and mechanical positioning equipment
-
Precision industrial automation
The M085246CBANU provides smooth, controlled power delivery and minimal vibration under extreme load conditions—ideal for continuous, precision-driven operations.
Why Choose Radicon Series M Gearboxes
Radicon’s Series M gearboxes combine robust engineering with superior mechanical efficiency. Designed for maximum durability and torque density, they are ideal for industrial environments requiring reliability and consistent performance.
-
Helical gears ensure smooth, low-noise operation
-
Rigid housing reduces vibration and increases stability
-
Maintenance-free sealed lubrication system
-
Compatible with NEMA-standard motors for easy integration
Order the Radicon Gearbox M085246CBANU
Order the Radicon M085246CBANU for precise, heavy-duty performance and long-lasting reliability.
Need assistance choosing the right gearbox? Call 1-877-465-9108 or email support@industrialgearboxsolutions.com.
Manufacturer Resources
FAQs
What is the main advantage of the M085246CBANU?
It delivers exceptional torque at ultra-low speeds, perfect for precision-heavy industrial processes.
What are its typical applications?
Used in conveyors, mixers, hoists, and automated systems where torque control and reliability are critical.
Does it require maintenance?
No. It includes a sealed lubrication system for maintenance-free, long-term use.
Can it be installed in any mounting position?
Yes, multiple mounting configurations are available—specify your preference at checkout.
