Problems with Improper Bearing Fits and Tolerances are a leading root cause of gearbox bearing failures, shaft damage, housing wear, excess vibration, lubricant breakdown, and unplanned downtime in industrial facilities. For maintenance managers, plant engineers, reliability engineers, mechanics, and purchasing teams, bearing fit decisions affect far more than installation convenience—they determine whether a gearbox can reliably carry load, maintain alignment, control heat, and achieve expected service life. When fits are too tight, too loose, out-of-round, poorly measured, or mismatched to operating conditions, even a premium bearing can fail prematurely. Understanding how fits and tolerances work helps teams troubleshoot failures faster, prevent repeat breakdowns, and make smarter repair-or-replace decisions.
Improper bearing fits and tolerances cause bearings to run hot, creep on shafts, spin in housings, lose internal clearance, generate vibration, damage gear mesh alignment, and fail prematurely. In industrial gearboxes, the most common fit-related problems include undersized shafts, oversized housings, excessive interference, poor roundness, thermal expansion mismatch, fretting corrosion, and incorrect tolerance selection for rotating loads. The best solution is to inspect shaft and housing dimensions with calibrated tools, compare them to bearing manufacturer recommendations, verify operating temperature and load direction, and correct worn or mis-machined fits before installing a new bearing.
Improper bearing fits and tolerance problems can lead to significant operational issues in machinery, affecting performance and longevity. For a deeper understanding of how these issues can impact industrial equipment, you may find the article on industrial gearbox repair in Fort Myers, Florida, particularly insightful. It discusses the importance of precise tolerances and proper fitting in maintaining gearbox efficiency and reliability. To read more, visit this article.
Why Bearing Fits and Tolerances Matter in Industrial Gearboxes
A bearing does not operate independently. It functions as part of a system that includes the shaft, housing bore, gear mesh, seals, lubricant, mounting hardware, and operating environment. The fit between the bearing inner ring and shaft, and between the bearing outer ring and housing, determines whether the bearing stays properly supported under load.
In industrial gearboxes, incorrect bearing fits can lead to:
- Loss of shaft support
- Misalignment between gear sets
- Gear tooth wear or pitting
- Excessive vibration
- Increased operating temperature
- Seal leakage
- Lubricant contamination
- Bearing raceway fatigue
- Shaft or housing damage
- Repeated bearing replacements without solving the root cause
For gearbox support, inspection, and repair, Industrial Gearbox Solutions provides services related to industrial gearbox repair, gearbox bearing replacement, and gearbox failure analysis.
What Is a Bearing Fit?
A bearing fit describes the relationship between the bearing ring and its mating component. The inner ring fits on the shaft, while the outer ring fits into the housing bore.
Common fit types include:
- Clearance fit: The mating part is slightly larger than the shaft or slightly smaller than the housing requirement, allowing easier assembly.
- Transition fit: The fit may be slightly loose or slightly tight depending on actual measured dimensions.
- Interference fit: The bearing ring is pressed tightly onto the shaft or into the housing.
The correct fit depends on operating load, rotation, bearing type, temperature, shaft material, housing material, precision requirements, and service environment.
What Are Bearing Tolerances?
Tolerances define the acceptable dimensional variation for bearing seats, shafts, housings, and bearing components. No machined component is perfectly sized, round, straight, or smooth. Tolerances establish controlled limits so the bearing can function as intended.
Important tolerance factors include:
- Shaft diameter
- Housing bore diameter
- Roundness
- Cylindricity
- Taper
- Surface finish
- Shoulder squareness
- Bearing seat width
- Runout
- Thermal growth allowance
Industry references such as SKF, Timken, and AGMA provide guidance for fit selection, mounting conditions, and gearbox reliability practices. Useful technical references include SKF bearing fitting guidance at https://www.skf.com, Timken engineering resources at https://www.timken.com, and AGMA standards information at https://www.agma.org.
Common Causes of Improper Bearing Fits and Tolerances
Improper fits are rarely random. Most are caused by machining errors, wear, incorrect specifications, installation shortcuts, or misunderstanding of load conditions.
Incorrect Shaft Diameter
If the shaft seat is too small, the inner ring may creep, slip, or spin. This damages the shaft, creates fretting debris, and generates heat. If the shaft is too large, excessive interference can reduce internal bearing clearance and cause overheating.
Typical causes include:
- Worn shaft journals
- Incorrect machining after repair
- Polishing or grinding beyond tolerance
- Reusing a damaged shaft
- Poor measurement technique
- Incorrect bearing catalog interpretation
A shaft that “looks good” visually may still be several ten-thousandths or thousandths of an inch outside specification, depending on bearing size and application.
Incorrect Housing Bore Diameter
Housing fit errors are especially common in gearboxes that have experienced bearing outer ring rotation. When the housing bore becomes oversized, the outer ring may creep under load. This can lead to fretting, metal transfer, looseness, noise, and misalignment.
Common housing bore issues include:
- Oversized bores from wear
- Out-of-round bores
- Cracked or distorted housings
- Soft foot or mounting distortion
- Improper line boring
- Damage from previous bearing failure
- Thermal distortion during operation
A housing bore that is too tight can also be problematic because it can compress the bearing outer ring, reduce internal clearance, and raise operating temperature.
Wrong Fit for Rotating Load Direction
Fit selection depends heavily on whether the load rotates relative to the bearing ring. As a general rule, a bearing ring subjected to a rotating load typically requires an interference fit to prevent creep.
For example:
- If the shaft rotates and the load direction is stationary, the inner ring usually sees a rotating load and often needs an interference fit.
- If the outer ring experiences a rotating load, the housing fit may need to be tighter.
- If the load is stationary relative to a ring, a looser fit may be acceptable depending on application.
Incorrect assumptions about load direction are a major source of repeat failures in gearboxes, fans, conveyors, crushers, mixers, and heavy-duty industrial drives.
Thermal Expansion Mismatch
Gearboxes operate under changing temperature conditions. Shafts, housings, and bearing rings expand as temperature rises. If fit selection does not account for thermal expansion, a bearing that measures correctly at room temperature may become too tight or too loose during operation.
Thermal issues are influenced by:
- Shaft material
- Housing material
- Operating temperature
- Ambient temperature
- Lubricant viscosity
- Load
- Speed
- Cooling system performance
- Gearbox duty cycle
For high-temperature gearbox applications, teams should review both bearing fit and internal clearance. A bearing with insufficient clearance after mounting and thermal growth may overheat quickly.
Poor Machining Quality
Even if shaft and housing diameters measure within basic size limits, geometry errors can still cause problems. A bearing seat must be round, straight, smooth, and square to support the bearing properly.
Poor machining conditions include:
- Tapered shaft seats
- Bell-mouthed housing bores
- Lobing or out-of-roundness
- Rough surface finish
- Eccentric bearing seats
- Improper shoulder radius
- Non-square shoulders
- Burrs and nicks
These defects can distort bearing rings, reduce bearing life, and cause localized load zones.
Industrial gearbox bearing failure can lead to costly downtime and production losses, so it’s important to address the issue promptly. Industrial gearbox bearing failure
Symptoms of Improper Bearing Fits in Gearboxes
Recognizing fit-related symptoms early can prevent catastrophic gearbox failure. Many bearing fit problems first appear as changes in vibration, temperature, oil condition, or noise.
Excessive Vibration
A loose bearing fit can allow micro-movement between the bearing ring and its seat. This may produce vibration signatures associated with looseness, misalignment, or bearing defects.
Common vibration indicators include:
- Increased overall vibration
- Looseness at 1x running speed
- Harmonics of shaft speed
- Bearing defect frequencies
- Gear mesh modulation
- Sidebands around gear mesh frequencies
- Impacting or random high-frequency energy
A reliability engineer should compare vibration data with operating history, bearing replacement records, and oil analysis results.
Overheating
A bearing that is fit too tightly may lose internal clearance. As rolling elements operate with insufficient clearance, friction increases and temperature rises.
Possible causes of fit-related overheating include:
- Excessive shaft interference
- Excessive housing interference
- Incorrect bearing internal clearance class
- Thermal expansion not considered
- Misalignment from distorted bearing seats
- Over-lubrication after installation
- Poor oil flow
Noria provides useful lubrication and oil analysis resources at https://www.noria.com, including articles on lubricant condition, contamination, and temperature-related degradation.
Fretting Corrosion
Fretting occurs when small relative movement between mating surfaces produces oxidation, debris, and surface damage. In bearing fits, it often appears as reddish-brown or black residue on the shaft, housing, or bearing ring.
Fretting may indicate:
- Loose shaft fit
- Loose housing fit
- Improper clamping
- Vibration-induced movement
- Inadequate interference fit
- Repeated load reversals
- Housing bore wear
Fretting is not just cosmetic. It removes material, changes dimensions, and can make future bearing fits even looser.
Bearing Creep or Spinning
Bearing creep is the slow movement of a bearing ring relative to its seat. In severe cases, the inner ring spins on the shaft or the outer ring spins in the housing. This often causes major damage.
Signs of bearing creep include:
- Polished shaft journal
- Scored housing bore
- Discoloration from heat
- Metal transfer
- Loose bearing after disassembly
- Fretting debris
- Loss of proper shaft diameter
- Increased endplay or radial looseness
Once a bearing has spun, replacing only the bearing is usually not enough. The shaft or housing must be measured and repaired.
Repeat Bearing Failures
One of the strongest signs of an improper bearing fit is repeated bearing failure in the same gearbox location. If a bearing fails again shortly after replacement, the root cause is often not the bearing itself.
Repeat failures may point to:
- Worn shaft seat
- Oversized housing bore
- Incorrect bearing selection
- Installation damage
- Gear mesh misalignment
- Lubrication failure
- Contamination
- Excessive load
- Incorrect tolerance stack-up
For persistent failures, consider a formal gearbox inspection and failure analysis before approving another like-for-like repair.
Improper bearing fits and tolerance problems can significantly impact the performance and longevity of machinery. For a deeper understanding of how different gear types can influence these issues, you might find it helpful to explore the article on the differences between worm gearboxes and helical gearboxes. This resource provides valuable insights into the design and application of various gear systems, which can help in selecting the right components to avoid such problems. You can read more about it here.
Troubleshooting Problems with Improper Bearing Fits and Tolerances
| Issue | Impact | Solution |
|---|---|---|
| Excessive clearance | Increased vibration and noise, reduced bearing life | Use proper interference fit or adjust tolerance |
| Interference fit too tight | Increased friction, potential for bearing damage | Adjust tolerance or use proper clearance fit |
| Incorrect shaft or housing dimensions | Poor alignment, increased stress on bearing | Ensure proper dimensions and tolerances |
Effective troubleshooting requires more than removing the failed bearing and installing a new one. The technician must inspect the complete bearing system.
Step-by-Step Troubleshooting Process
Use the following process when fit-related failure is suspected:
- Review failure history and maintenance records.
- Identify bearing type, size, clearance class, and manufacturer.
- Record operating conditions, including speed, load, temperature, and lubrication method.
- Inspect bearing damage patterns.
- Measure shaft seat diameter in multiple locations.
- Measure housing bore diameter in multiple locations.
- Check roundness, taper, and surface finish.
- Inspect shoulders, fillets, spacers, locknuts, and retaining hardware.
- Review installation procedures and tooling.
- Compare measured values against SKF, Timken, or OEM fit recommendations.
- Determine whether repair, sleeve, re-machine, or replacement is required.
- Document corrective actions for future maintenance planning.
Bearing Damage Clues and Possible Fit Problems
| Observed Condition | Possible Fit-Related Cause | Recommended Action |
||||
| Inner ring fretting | Shaft fit too loose | Measure shaft, repair or replace shaft |
| Outer ring fretting | Housing bore too loose | Inspect housing bore, sleeve or re-machine |
| High operating temperature | Fit too tight or clearance too low | Verify mounted clearance and bearing class |
| Raceway spalling in load zone | Ring distortion or overload | Check geometry, load, and alignment |
| Cracked inner ring | Excessive interference fit | Review shaft size and mounting method |
| Bearing slips during operation | Insufficient interference | Correct fit and inspect mating surface |
| Early repeat failure | Root cause not corrected | Perform full gearbox failure analysis |
| Seal leakage after bearing replacement | Shaft misalignment or endplay issue | Inspect bearing location and housing fits |
Questions to Ask During Root Cause Analysis
Maintenance and reliability teams should ask:
- Did the bearing fail in the same position as previous failures?
- Was the replacement bearing identical to the original design?
- Were shaft and housing dimensions documented?
- Were measurements taken at multiple points?
- Was the shaft polished before installation?
- Was heat used correctly during mounting?
- Were locknuts or retaining devices torqued properly?
- Was internal clearance checked after mounting?
- Did operating temperature change after repair?
- Were gear contact patterns inspected?
If the answer to several of these questions is “unknown,” the repair documentation process should be improved.
Inspection Methods for Bearing Fits and Tolerances
Accurate inspection is essential. Fit problems can be extremely small dimensionally but severe operationally.
Recommended Measurement Tools
Use calibrated tools appropriate for the required precision:
- Outside micrometers for shaft diameters
- Bore gauges for housing bores
- Dial indicators for runout
- Surface finish gauges
- Straight edges and precision squares
- Feeler gauges
- Torque wrenches
- Telescoping gauges for rough checks
- Coordinate measuring machines for critical components
- Blueing compound for contact checks
- Infrared thermography for operating temperature checks
- Vibration analyzers
- Oil analysis sampling kits
Avoid relying only on calipers for critical bearing fits. Calipers are useful for rough measurements but generally not precise enough for final bearing seat verification.
Where and How to Measure
Shafts and housing bores should be measured in multiple planes and locations.
For shafts:
- Measure at the inboard side, center, and outboard side of the bearing seat.
- Take measurements at 0°, 90°, 180°, and 270°.
- Check for taper, out-of-roundness, scoring, and wear bands.
- Inspect shoulders and radii for damage or incorrect geometry.
For housing bores:
- Measure at multiple depths.
- Check for bell-mouth wear.
- Measure in several angular positions.
- Inspect for fretting, cracks, or metal displacement.
- Confirm the housing is not distorted by mounting stresses.
Inspection Checklist
| Inspection Item | Acceptable Condition | Warning Signs |
||||
| Shaft diameter | Within recommended tolerance | Undersize, oversize, taper |
| Housing bore | Within recommended tolerance | Oversize, out-of-round, bell-mouth |
| Surface finish | Smooth and specification-compliant | Scoring, galling, polishing damage |
| Shoulder squareness | Square to shaft axis | Uneven contact, burrs |
| Bearing seat roundness | Uniform support | Lobing, distortion |
| Internal clearance | Correct after mounting | Too tight, too loose |
| Lubrication condition | Clean and correct viscosity | Metal particles, oxidation, water |
| Mounting hardware | Properly torqued and secured | Loose locknut, damaged washer |
| Gear contact pattern | Proper tooth contact | Misalignment, edge loading |
Using Vibration and Oil Analysis
Vibration and oil analysis can help identify fit-related damage before disassembly.
Vibration may detect:
- Mechanical looseness
- Bearing defect frequencies
- Gear mesh irregularities
- Misalignment
- Imbalance from shaft movement
- Impacting from loosened components
Oil analysis may reveal:
- Elevated iron
- Bearing alloy particles
- Oxidation
- Water contamination
- Dirt ingress
- Abnormal wear debris
- Overheating indicators
For gearbox lubrication best practices, reference Noria’s lubrication knowledge base at https://www.noria.com and consider an internal link to Industrial Gearbox Solutions’ gearbox lubrication services.
Prevention Strategies for Improper Bearing Fits
Preventing fit-related failures requires better specifications, measurement discipline, installation practices, and documentation.
Specify Fits Based on Application Conditions
Do not choose fits by guesswork. Fit selection should consider:
- Bearing type
- Shaft speed
- Radial load
- Axial load
- Shock load
- Load direction
- Temperature
- Shaft material
- Housing material
- Lubrication method
- Required precision
- Ease of assembly and removal
- Duty cycle
SKF and Timken both publish engineering guidance for bearing fits and mounting practices. AGMA standards are also important for gearbox design, rating, and reliability considerations.
Control Shaft and Housing Repair Quality
When shafts or housings are repaired, specify tolerances clearly on repair drawings and purchase orders. Purchasing professionals should avoid vague language such as “clean up shaft” or “repair bearing bore” without dimensional requirements.
A repair specification should include:
- Nominal diameter
- Tolerance range
- Surface finish
- Roundness requirement
- Cylindricity requirement
- Shoulder geometry
- Fillet radius
- Hardness if applicable
- Coating or sleeve requirements
- Inspection documentation
For critical gearbox rebuilds, ask for dimensional reports before assembly.
Train Technicians on Proper Bearing Installation
Even a correctly machined fit can be ruined by poor installation. Common installation mistakes include hammering on bearing rings, applying force through rolling elements, overheating bearings, contaminating seats, failing to use proper sleeves, and ignoring internal clearance.
Best practices include:
- Use induction heaters for controlled bearing heating.
- Never heat bearings with an open flame.
- Apply mounting force only to the ring being fitted.
- Clean all mating surfaces.
- Remove burrs carefully without changing dimensions.
- Use correct locknut torque.
- Verify bearing seating against shoulders.
- Confirm endplay or preload where required.
- Protect bearings from dirt and moisture before installation.
Document Every Critical Measurement
A strong maintenance program includes repeatable documentation. For each gearbox bearing replacement, record:
- Bearing manufacturer and part number
- Bearing clearance class
- Shaft measurements
- Housing bore measurements
- Operating temperature before and after repair
- Vibration readings before and after repair
- Lubricant condition
- Photos of damage
- Installation method
- Technician notes
- Corrective actions taken
This documentation helps maintenance managers and reliability engineers identify repeat problems and justify permanent repairs.
Repair vs. Replacement: What to Do When Fits Are Wrong
When improper fits are found, the next decision is whether to repair the component, replace it, or rebuild the gearbox.
When Repair May Be Appropriate
Repair may be suitable when the gearbox housing or shaft is structurally sound and the worn area can be restored to specification.
Common repair options include:
- Precision grinding
- Metalizing or spray welding
- Sleeving
- Chrome plating and grinding
- Welding and re-machining
- Line boring housing bores
- Installing engineered repair inserts
- Re-machining shoulders
- Correcting surface finish
- Restoring seal journals
Repair is often cost-effective for large, obsolete, or long-lead-time gearboxes where replacement is expensive or impractical.
When Replacement Is Better
Replacement may be the best option when damage is severe, repeated, or affects the structural integrity of the gearbox.
Consider replacement if:
- The housing is cracked.
- The shaft is deeply scored or bent.
- Multiple bearing bores are misaligned.
- Gear mesh alignment cannot be restored.
- Previous repairs have removed too much material.
- The gearbox is undersized for the application.
- Parts are obsolete and repair risk is high.
- Downtime cost favors a complete replacement unit.
For urgent situations, Industrial Gearbox Solutions can assist with emergency gearbox repair and replacement planning.
Cost Comparison Table
| Option | Best For | Advantages | Risks |
|||||
| Replace bearing only | No shaft or housing damage | Fastest and lowest initial cost | Failure returns if fit problem remains |
| Repair shaft seat | Worn but salvageable shaft | Restores proper fit | Requires precision machining |
| Sleeve housing bore | Oversized housing bore | Saves expensive housing | Must maintain alignment |
| Rebuild gearbox | Multiple issues present | Comprehensive reliability improvement | Higher cost and downtime |
| Replace gearbox | Severe damage or obsolete unit | Long-term solution | Lead time and capital cost |
Purchasing Considerations
Purchasing teams should evaluate more than bearing price. A low-cost bearing installed into a worn shaft or housing will not solve the failure. Similarly, a premium bearing may fail quickly if tolerances are wrong.
Purchase orders should specify:
- Bearing brand or approved equivalent
- Internal clearance class
- Precision class if applicable
- Required inspection reports
- Shaft and housing dimensional documentation
- Lubrication requirements
- Warranty expectations
- Root cause analysis if repeat failure occurred
Maintenance Best Practices for Bearing Fit Reliability
Long-term reliability depends on consistent maintenance practices before, during, and after installation.
Best Practices for Maintenance Managers
Maintenance managers should standardize procedures and ensure technicians have the right tools.
Recommended actions:
- Create gearbox bearing replacement procedures.
- Require dimensional checks before bearing installation.
- Maintain calibrated measuring tools.
- Train mechanics in bearing mounting.
- Track repeat failures by asset number.
- Review downtime history and repair quality.
- Require root cause analysis for critical failures.
- Keep spare bearings in clean, dry storage.
Best Practices for Plant Engineers
Plant engineers should consider whether the gearbox is operating within its design envelope.
Review:
- Actual horsepower and torque
- Shock loading
- Starts and stops
- Reversing loads
- Ambient temperature
- Foundation stiffness
- Coupling alignment
- Gearbox mounting
- Lubricant selection
- Cooling requirements
If operating conditions have changed since installation, original bearing fits and clearances may no longer be ideal.
Best Practices for Reliability Engineers
Reliability engineers should combine condition monitoring with failure analysis.
Recommended practices:
- Trend vibration data.
- Track temperature changes.
- Use oil analysis regularly.
- Inspect failed bearings systematically.
- Build a failure mode database.
- Compare failures against maintenance work history.
- Use precision alignment and balancing.
- Apply reliability-centered maintenance principles.
Best Practices for Mechanics
Mechanics are often the last line of defense against fit-related failure.
Field tips:
- Do not install a bearing on a visibly damaged shaft.
- Do not assume a bore is acceptable because the bearing “fits.”
- Measure before and after cleaning.
- Avoid excessive polishing.
- Do not use center punches to tighten a loose fit.
- Do not rely on retaining compound for major dimensional errors.
- Protect bearing seats from burrs and dents.
- Ask for engineering review when fits are questionable.
Tables: Fit Problems, Symptoms, and Corrective Actions
Common Improper Fit Problems
| Fit Problem | Likely Result | Corrective Action |
||||
| Shaft undersized | Inner ring creep | Restore shaft diameter |
| Shaft oversized | Reduced clearance, heat | Re-machine shaft or select correct clearance |
| Housing oversized | Outer ring spin | Sleeve or line bore housing |
| Housing too tight | Bearing distortion | Correct bore size |
| Out-of-round shaft | Uneven loading | Precision grind or replace shaft |
| Out-of-round housing | Outer ring distortion | Line bore or repair housing |
| Rough seat surface | Poor support, fretting | Refinish surface |
| Incorrect shoulder | Misalignment | Re-machine shoulder |
| Wrong bearing clearance | Heat or looseness | Select correct clearance class |
| Thermal expansion ignored | Fit changes in operation | Recalculate fit for operating temperature |
Symptoms by Department Concern
| Role | Concern | What to Watch |
||||
| Maintenance Manager | Downtime and repeat work | Frequent bearing changes |
| Plant Engineer | System performance | Temperature, load, alignment |
| Reliability Engineer | Failure patterns | Vibration and oil trends |
| Mechanic | Installation quality | Fit, seating, tooling |
| Purchasing Professional | Cost and lead time | Correct specification, not just price |
Frequently Asked Questions
What happens if a bearing fit is too loose?
A loose bearing fit can allow the bearing ring to creep, slip, or spin on the shaft or in the housing. This causes fretting, heat, dimensional wear, vibration, and eventual bearing failure. In gearboxes, a loose fit can also affect gear alignment and seal performance.
What happens if a bearing fit is too tight?
A fit that is too tight can reduce internal bearing clearance, distort the bearing ring, increase friction, and cause overheating. In severe cases, it may crack the bearing ring or cause rapid raceway fatigue.
Can retaining compound fix a loose bearing fit?
Retaining compound may help with minor looseness in non-critical applications, but it should not be used as a substitute for proper machining when a shaft or housing is significantly worn. Critical gearbox applications should be restored to proper dimensional tolerance.
How do I know if the shaft or housing caused the bearing failure?
Inspect the bearing seat surfaces for fretting, scoring, polishing, metal transfer, or heat discoloration. Then measure shaft and housing dimensions in multiple locations. Compare readings to bearing manufacturer or OEM recommendations.
Should bearing fits be checked every time a gearbox is rebuilt?
Yes. Shaft and housing fits should be checked during every significant gearbox repair or bearing replacement, especially if the failure was premature or repeated.
Can improper bearing fits damage gears?
Yes. Bearing fits affect shaft position and stiffness. If a bearing moves, wears its seat, or runs with excessive clearance, gear mesh alignment can change. This may cause gear tooth pitting, edge loading, noise, and vibration.
Which sources provide bearing fit recommendations?
SKF, Timken, and other bearing manufacturers publish bearing fit and mounting guidance. AGMA provides standards and technical resources related to gear drives. Noria provides lubrication and oil analysis resources that are useful when investigating bearing failure.
Is overheating always caused by a tight bearing fit?
No. Overheating can also result from over-lubrication, under-lubrication, contamination, misalignment, excessive load, incorrect lubricant viscosity, seal drag, or cooling problems. However, excessive interference fit and reduced internal clearance are common causes.
Key Takeaways
- Improper bearing fits and tolerances are a major cause of premature gearbox bearing failure.
- Loose fits can cause creep, fretting, spinning, vibration, and shaft or housing wear.
- Tight fits can reduce internal clearance, increase heat, distort bearing rings, and shorten bearing life.
- Shaft and housing dimensions must be measured with calibrated tools, not guessed visually.
- Roundness, taper, surface finish, and shoulder geometry are as important as diameter.
- Repeat bearing failures often indicate an unresolved fit, lubrication, alignment, or load problem.
- Repair options include grinding, sleeving, line boring, plating, welding, and re-machining.
- Replacement may be necessary when shafts, housings, or gearbox structures are severely damaged.
- Maintenance documentation, vibration analysis, oil analysis, and proper installation procedures help prevent repeat failures.
- Purchasing teams should specify dimensional requirements and inspection reports, not just bearing part numbers.
Suggested Branded Images

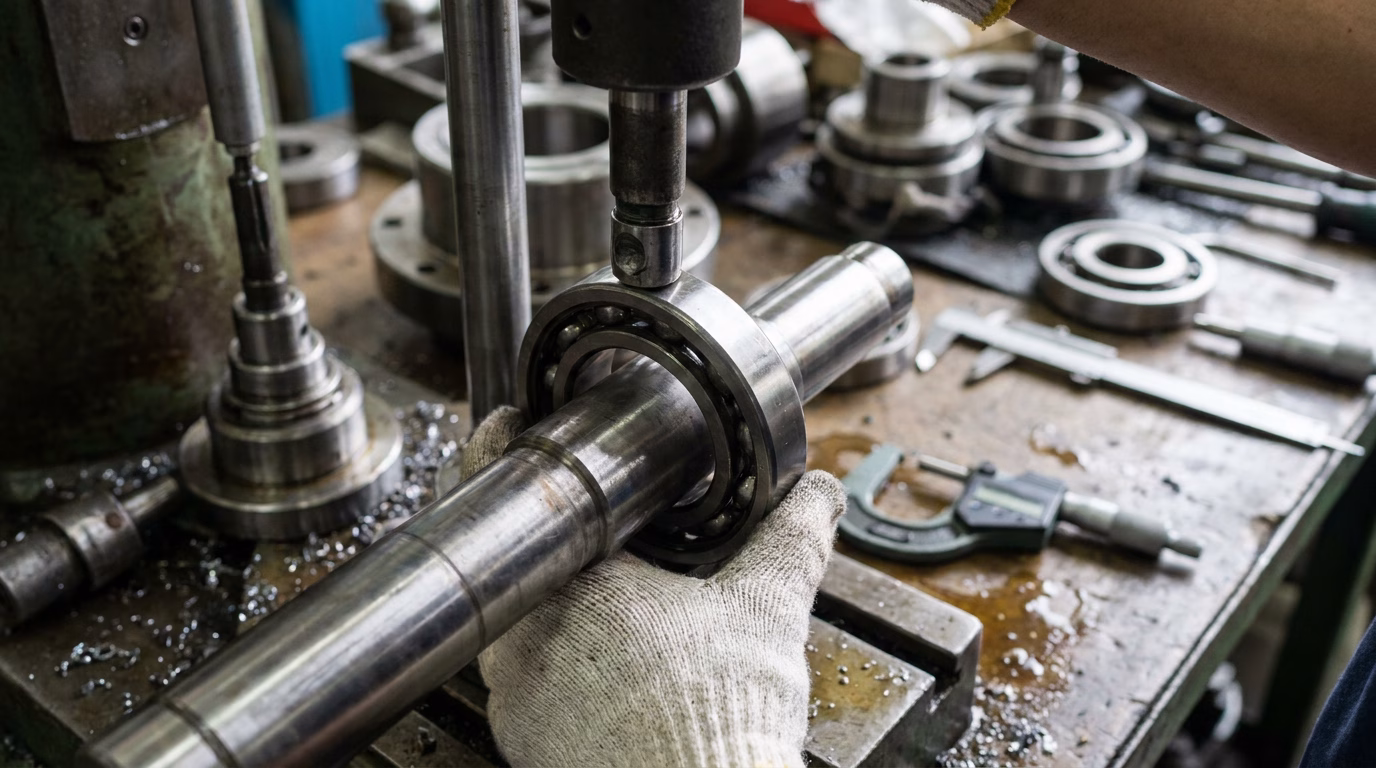

Image 1: Technician Measuring Gearbox Shaft Bearing Seat
Alt text: Technician measuring industrial gearbox shaft bearing fit with an outside micrometer
Caption: Accurate shaft measurement is essential before installing a replacement gearbox bearing.
Image 2: Worn Housing Bore with Fretting Damage
Alt text: Fretting corrosion inside industrial gearbox housing bore caused by loose bearing fit
Caption: Fretting in a housing bore often indicates outer ring movement and improper fit.
Image 3: Bearing Installation with Induction Heater
Alt text: Industrial gearbox bearing being heated with induction heater for proper installation
Caption: Controlled heating helps prevent installation damage and supports proper bearing seating.
Image 4: Gearbox Bearing Failure Analysis Layout
Alt text: Failed gearbox bearing, shaft, and housing components arranged for root cause analysis
Caption: A complete failure analysis evaluates the bearing, shaft, housing, lubricant, and operating conditions.
Image 5: Reliability Engineer Reviewing Vibration Data
Alt text: Reliability engineer analyzing vibration data from industrial gearbox bearing failure
Caption: Vibration analysis can identify looseness, bearing defects, and gear mesh issues before catastrophic failure.
SEO Metadata
Meta Title: Problems with Improper Bearing Fits and Tolerances in Gearboxes
Meta Description: Learn the causes, symptoms, inspection methods, troubleshooting steps, and repair options for improper bearing fits and tolerances in industrial gearboxes.
Primary Keyword: Problems with Improper Bearing Fits and Tolerances
Secondary Keywords: bearing fit problems, gearbox bearing failure, bearing tolerances, loose bearing fit, tight bearing fit, shaft bearing fit, housing bore tolerance, gearbox bearing repair
Suggested URL Slug: problems-with-improper-bearing-fits-and-tolerances
Search Intent: Informational and commercial investigation for maintenance, engineering, reliability, repair, and purchasing professionals troubleshooting gearbox bearing failures.
Authoritative Sources to Reference
- SKF bearing mounting, fit, and maintenance guidance: https://www.skf.com
- Timken bearing engineering and service resources: https://www.timken.com
- AGMA gear drive standards and technical information: https://www.agma.org
- Noria lubrication and oil analysis resources: https://www.noria.com
Conclusion
Problems with Improper Bearing Fits and Tolerances can turn a routine gearbox bearing replacement into a recurring reliability issue if the underlying shaft, housing, thermal, or installation condition is not corrected. The most effective approach is systematic: inspect the failed bearing, measure the shaft and housing accurately, verify fits against manufacturer guidance, review lubrication and operating conditions, and document all findings. For maintenance managers, engineers, mechanics, reliability teams, and purchasing professionals, this discipline reduces downtime, prevents repeat failures, and improves gearbox life. If your facility is dealing with recurring gearbox bearing failures, unusual vibration, overheating, or worn bearing seats, request expert support before the next failure becomes a production emergency.
FAQs
What are bearing fits and tolerance problems?
Bearing fits refer to the relationship between the shaft and the bearing, while tolerance problems occur when there is a deviation from the specified dimensions or requirements for the bearing and its mating parts.
What are the consequences of improper bearing fits and tolerance problems?
Improper bearing fits and tolerance problems can lead to increased friction, premature wear, reduced efficiency, and potential equipment failure. These issues can also result in increased maintenance and downtime.
How can improper bearing fits and tolerance problems be identified?
Improper bearing fits and tolerance problems can be identified through visual inspection, measurements, and performance monitoring. Signs of issues include excessive noise, vibration, and irregular wear patterns.
What are the common causes of improper bearing fits and tolerance problems?
Common causes include incorrect installation, misalignment, shaft deflection, inadequate lubrication, and manufacturing errors. Environmental factors such as temperature and contamination can also contribute to these problems.
How can improper bearing fits and tolerance problems be prevented or corrected?
Proper installation techniques, regular maintenance, adherence to specified tolerances, and the use of quality bearings and mating parts can help prevent improper fits and tolerance problems. Corrective measures may include re-machining mating parts, adjusting clearances, or replacing components.
